Backend API

Implementation Decisions

Main challenge: keeping all players synchronized with real-time game state
Solution: WebSocket connections for live updates + initial game state request

Django-Ninja API Framework

For the backend framework, I chose Django-Ninja over Django REST Framework and FastAPI.

Like DRF, Ninja follows the MVT pattern, but it requires less boilerplate and uses a declarative syntax with type annotations that make code easier to maintain (Viewsets, nested Serializers).

Django-Ninja has all the benefits of FastAPI (Pydantic, Async, auto documentations) so I decided to use Ninja instead.

I opted not to use Django-Ninja-Extra because its class-based views introduced unnecessary complexity and generated schemas incompatible with the React API client generators (openapi-ts, swagger-typescript-api)

Django Channels for WebSocket Support

Real-time bidirectional communication
Instant game updates without polling
Integrates with Django authentication
Channel layer abstraction for room broadcasting

API Endpoints

Player Authentication with Knox

Registration and login with Knox tokens
Token refresh for session maintenance
Works with HTTP but not implemented for Websocket
See Custom Knox Token Authentication below

Game Creation and Joining

Configurable game parameters (code length, colors, max guesses)
Create game room -> create websocket connection
Join game rooms
Game state is stored inside the game_state field in the Room model

Guess submission (/check) and creating quick play rooms (/quick-play) HTTP endpoints were added when testing single-player game, but was not added use Websocket for real-time game updates.

PostgreSQL Database Integration

Postgres was chosen because it supports a native JSON type for storing the game state.

Without Postgres, I would have needed to create a separate GameState model, which would have been less flexible than storing the data directly in a JSON column.

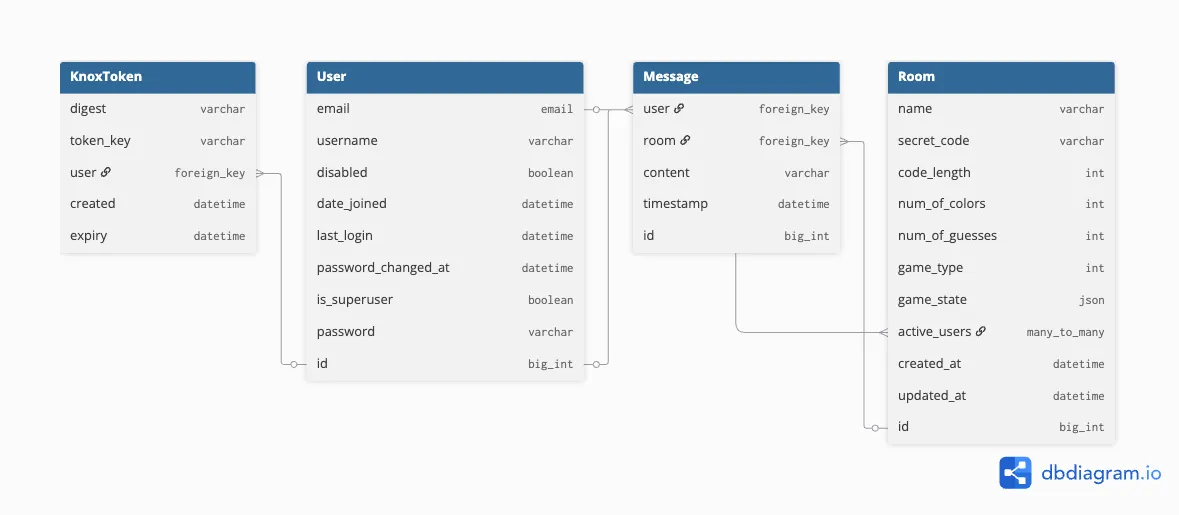

erd diagram

WebSocket Connections

Websocket connection was handled with Django-channels. I have added four different message types for this project:

connect: join room
disconnect: leave room
receive: receive messages from client
- There are two message/event types:
  - make_move: players submitting guess
  - game_update: game state update

Note

Messages are sent from the client using sendGameMessage() in useGameWebSocket.ts.

Redis

Django-Channel[redis], channel-redis[daphne] was used for this project.

The main reason to use a Redis channel layer is for data persistence.

If the project doesn’t use Redis backend and the Backend server shuts down for some reason, then all active websocket rooms are lost.

Custom Knox Token Authentication

This project uses custom knox token django app tailored for Django-Ninja. Knox gives you the same easy server-side control over logins that sessions do, but without storing tokens in plaintext like DRF’s default auth. Unlike JWTs, which are tricky to revoke once they’re out in the wild, Knox keeps only a hashed version on the server(database) so you can kill a single device’s login or all of them instantly. It’s a great fit for APIs that need secure, multi-device logins without the headache of managing JWT blacklists or heavy session state. Since Knox tokens are stored in a securely hashed form, even if someone gets access to the database, they can’t use the stored token to log in.

I’m including this in the project mainly because I’ve worked with it before at a startup and I love it very much.
